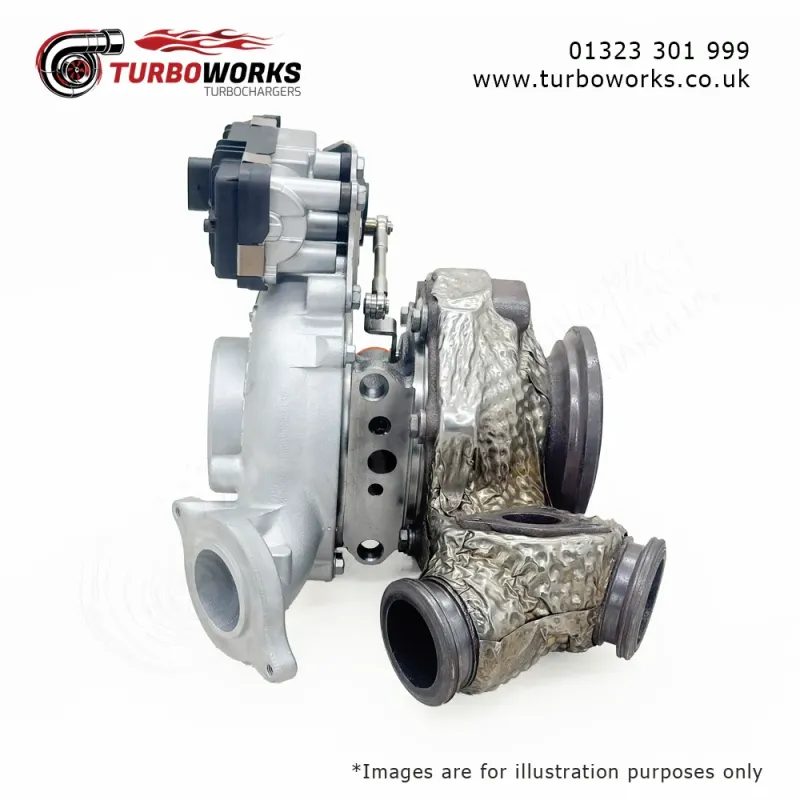

Audi A4 A5 A6 A7 Turbocharger
Direct replacement turbo for selected Audi 3.0 TDI models.

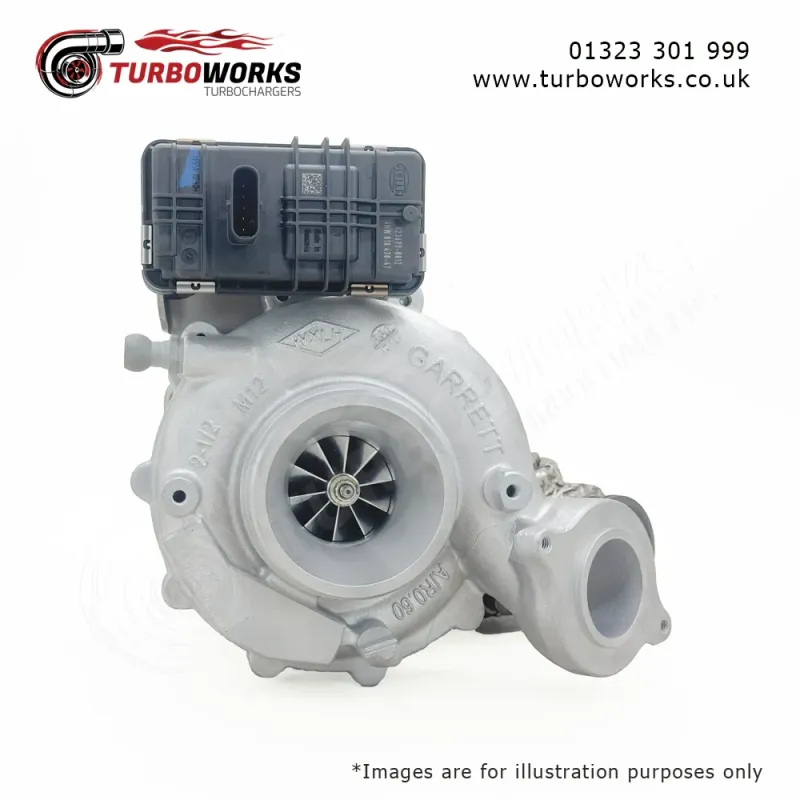

Audi Q7 Q8 3.0 TDI Turbo 888580
Remanufactured Garrett turbocharger for 163HP to 272HP V6 diesel applications.

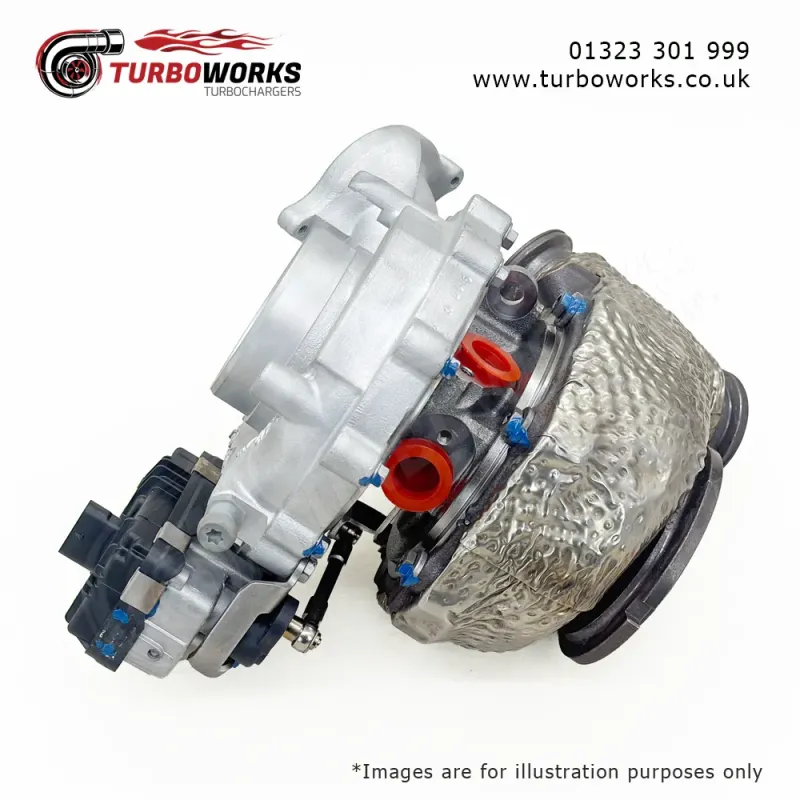

VW Amarok Touareg 3.0 TDI Turbo
Replacement turbo for selected Volkswagen V6 TDI applications.

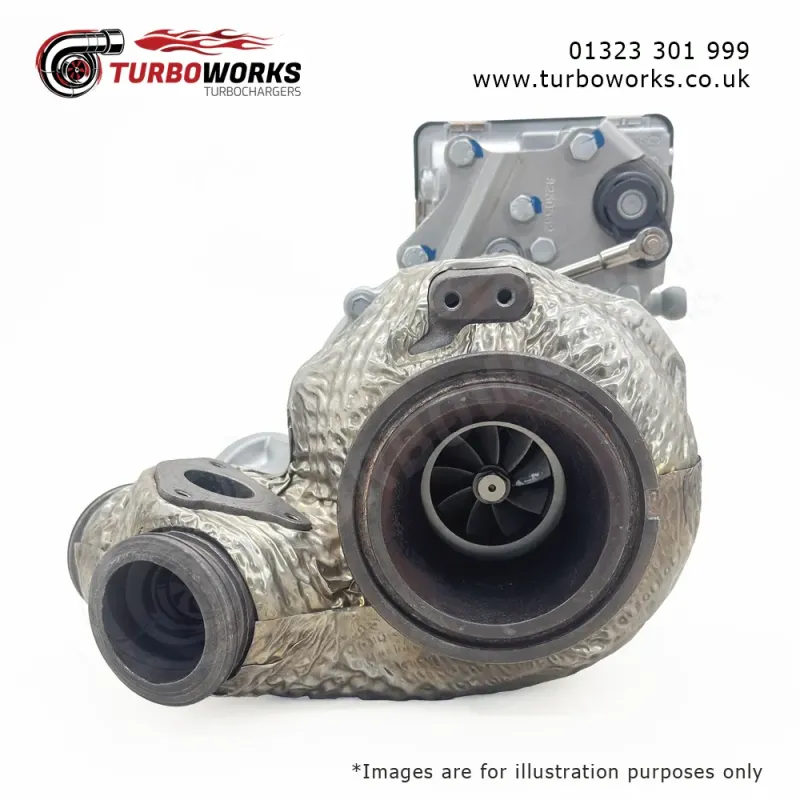

Garrett GTD2060VZ Turbo 839078 / 839077
Replacement unit covering 888580, 839078, 881651, 839077 and BMTS 40009761 references.
Audi A4 A5 A6 A7 Turbocharger
Direct replacement turbo for selected Audi 3.0 TDI models.
Audi Q7 Q8 3.0 TDI Turbo 888580
Remanufactured Garrett turbocharger for 163HP to 272HP V6 diesel applications.

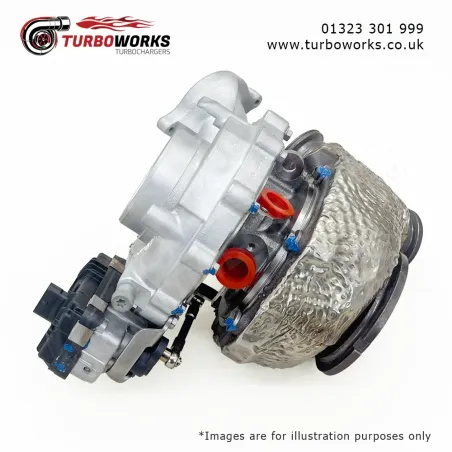

VW Amarok Touareg 3.0 TDI Turbo
Replacement turbo for selected Volkswagen V6 TDI applications.
Garrett GTD2060VZ Turbo 839078 / 839077
Replacement unit covering 888580, 839078, 881651, 839077 and BMTS 40009761 references.

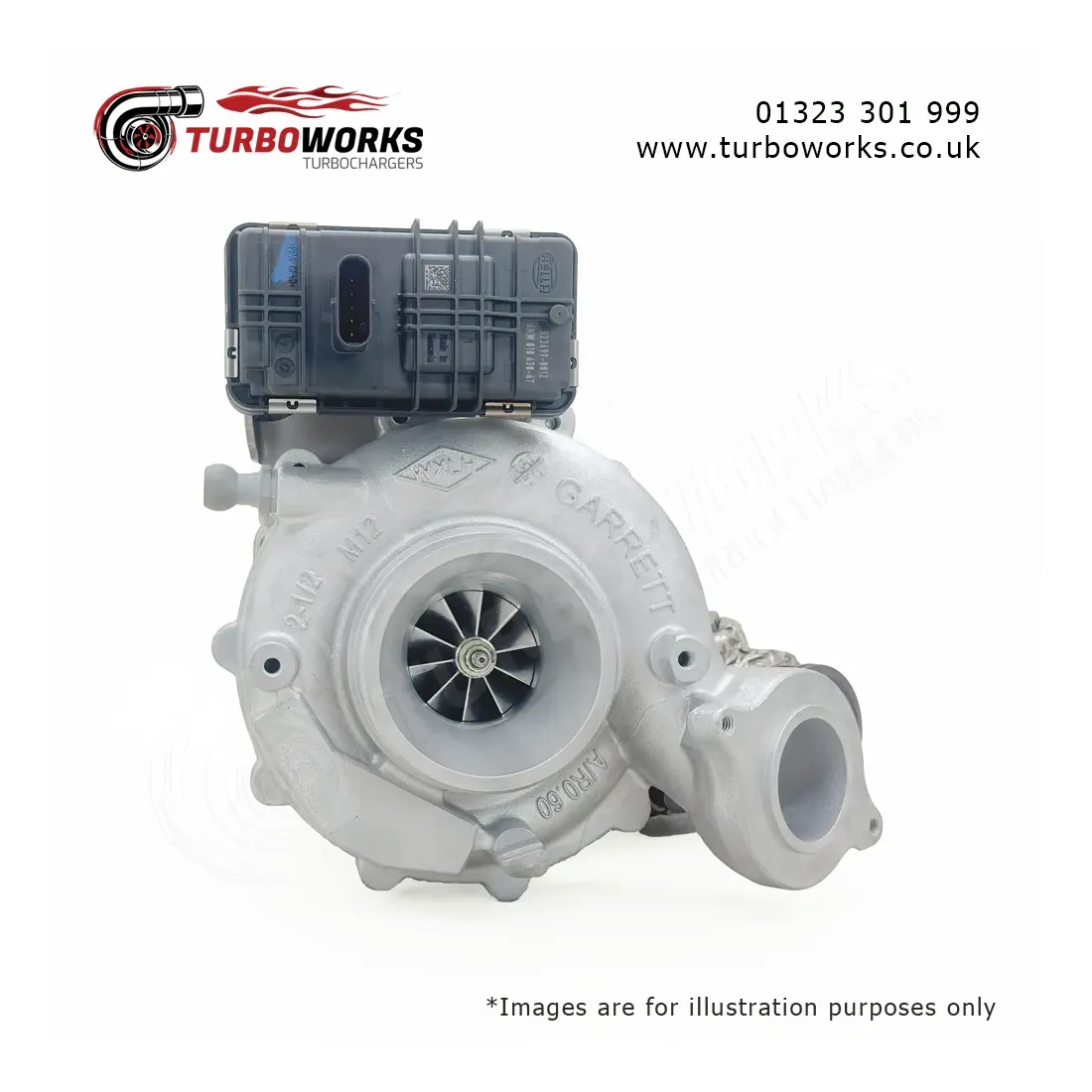

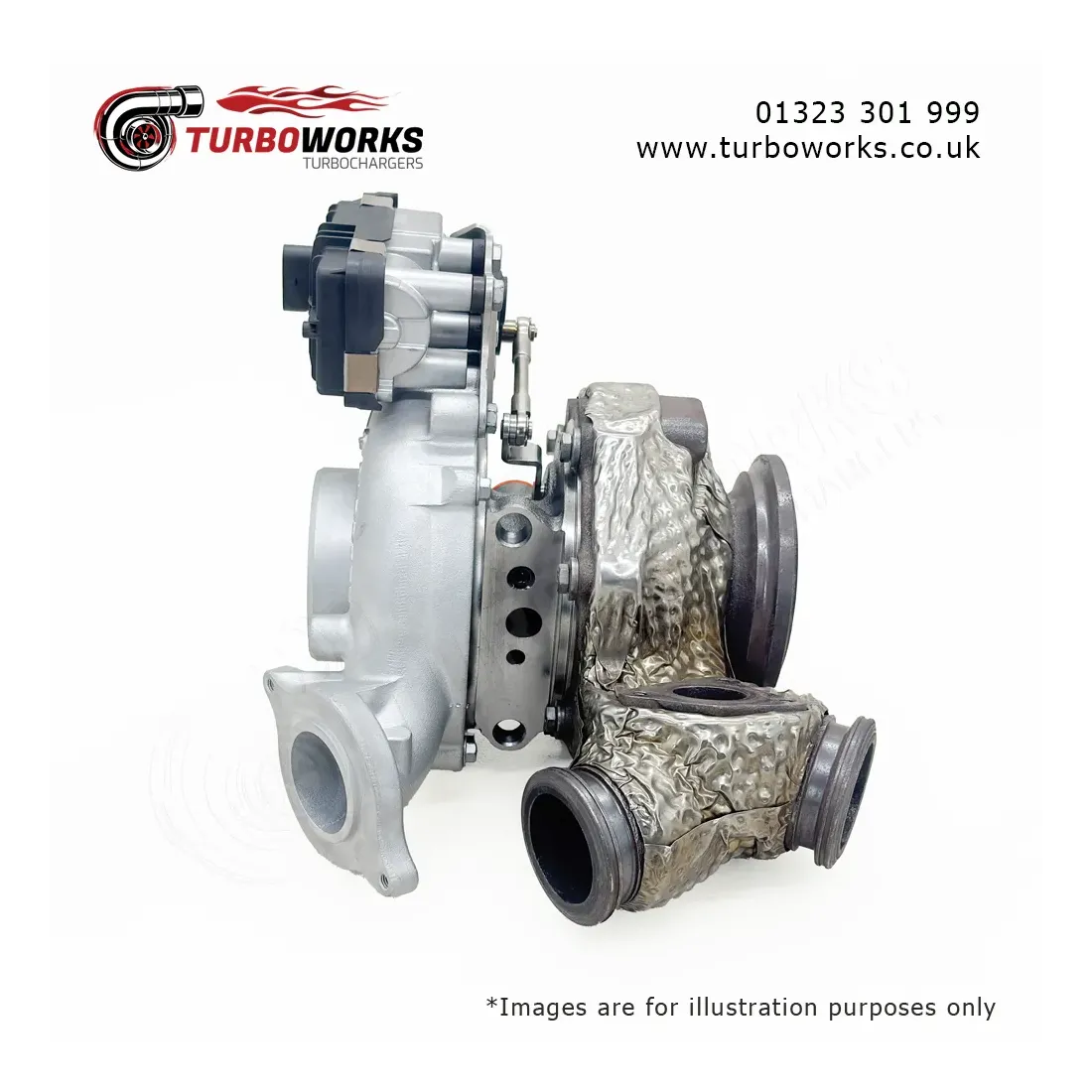

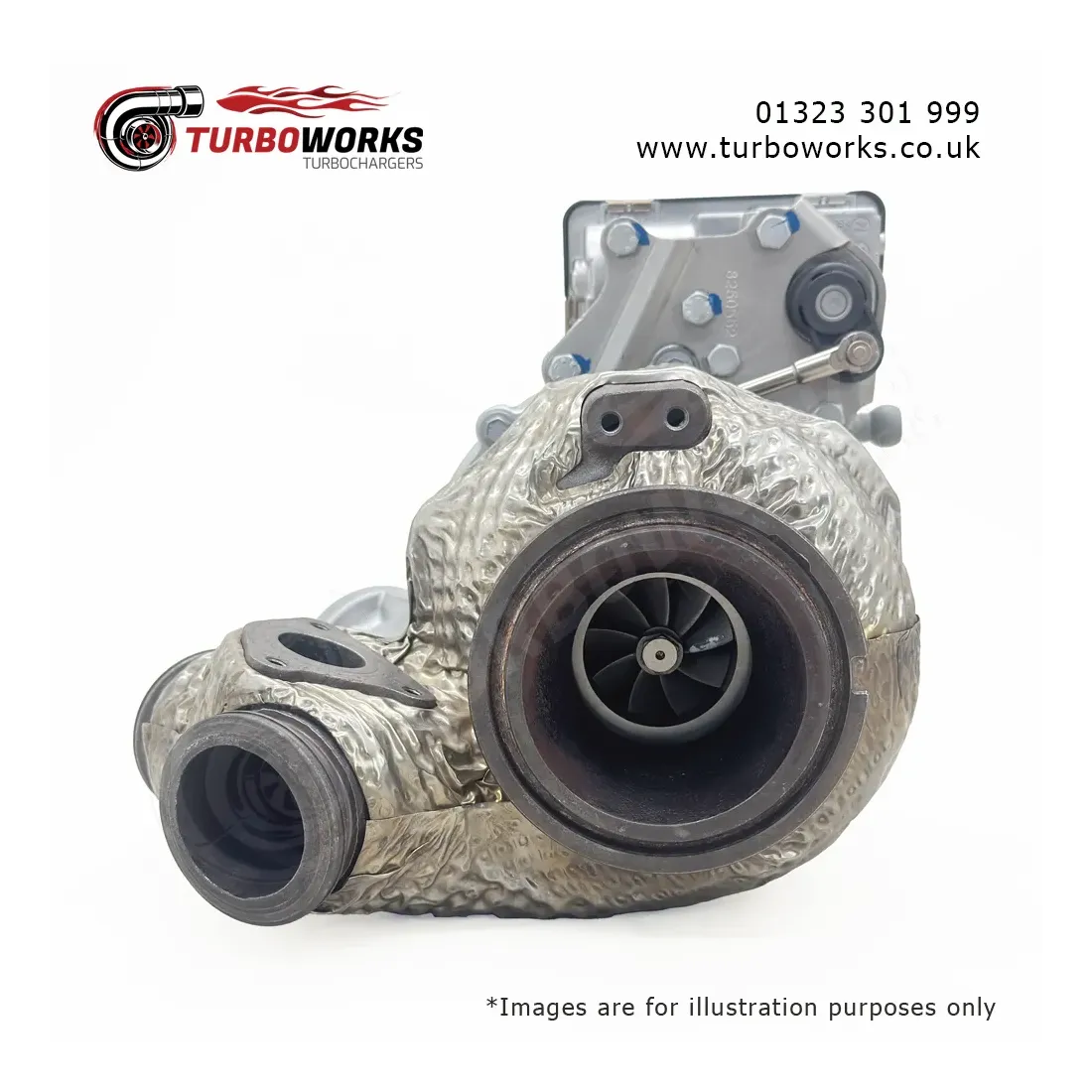

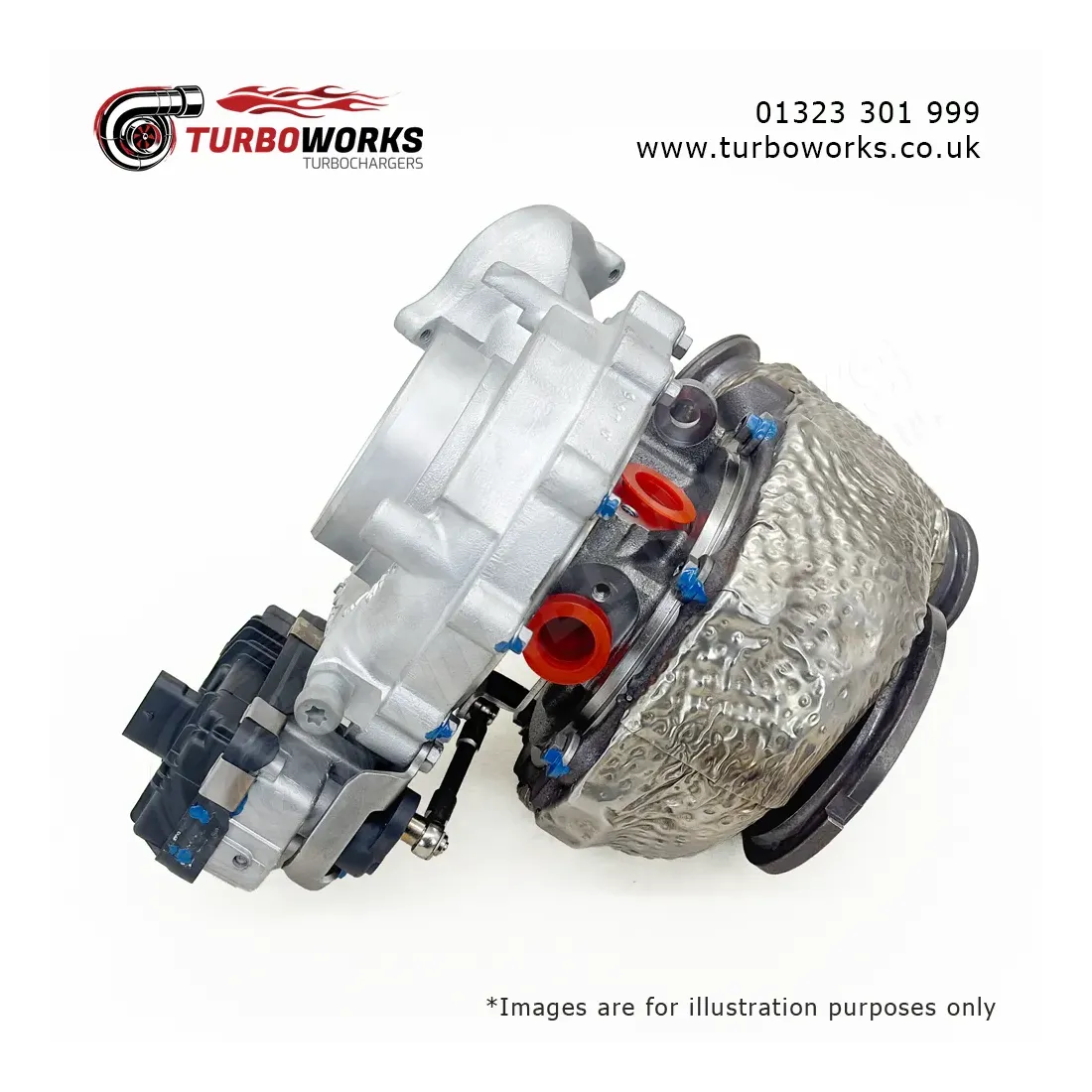

Remanufactured Turbo / Turbocharger 888580 839078 881651 839077 - Audi VW 3.0 TDI | 163-272HP

In Stock
£445.00
VAT included Delivered within 2-3 days

Remanufactured Garrett turbocharger for selected Audi and Volkswagen 3.0 TDI diesel applications, including Audi A4, A5, A6, A7, A8, Q7 and Q8, plus VW Amarok and Touareg. Covers selected 163-272HP / 120-200kW V6 TDI applications with engine codes including CRTC, CRTE, CRTD, CSWB, CVMD, CVZA, CZVA, CZVB, CZVC, CZVD and DDXA-DDXE.

Main turbo references: 888580 / 839078 / 881651 / 839077. Also referenced as Garrett GTD2060VZ and BMTS 40009761. Key OE numbers include 059145873FA, 059145873BP, 059145873CL, 059145873CH, 059145873BJ and 059145873DB. Direct replacement and supplied on an exchange basis.

Supplied without the original manufacturer’s box.

Please check your part number before ordering. Call 07440 707 255 or 01323 301 999 for help.

Images are for illustration purposes only.

* Surcharge
Yes, £150 (£150.00)
-
Yes, £150 (£150.00)
No, I will send my old turbo first
Before adding the product to the basket, please select an option.


Remanufactured Turbo / Turbocharger 888580 839078 881651 839077 - Audi VW 3.0 TDI | 163-272HP

Supplied without the original manufacturer’s box

Please check your part number before ordering. Call 07440 707 255 or 01323 301 999 for help.

This remanufactured turbocharger fits a wide range of Audi and Volkswagen models fitted with the 3.0 V6 TDI diesel engine. Applications include Audi A4, A5, A6, A6 Allroad, A7, A8, Q7 and Q8, together with VW Amarok and Touareg, covering selected versions producing between 163HP and 272HP.

Main turbo references 888580, 839078, 881651 and 839077 include 888580-0001, 839078-0001, 881651-0001, 839077-0002, 839077-0008, 839077-0009 and 839077-0011. This Garrett turbo is also identified as GTD2060VZ and BMTS 40009761. OE references include 059145873FA, 059145873BP, 059145873CL, 059145873CH, 059145873BJ, 059145873DB, 059145873EN, 059145873ES and 059145873BL.

This turbocharger covers a broad range of 3.0 TDI engine variants, so the original turbo or OE number should be checked before ordering. Before fitting, check the oil feed and return, breather system, intercooler, boost pipes, EGR system, DPF condition and turbo control system, and identify the cause of the original turbo failure. For fitting, diagnostics and other workshop support, see our turbocharger services.

Product Highlights
  • Main turbo references: 888580 / 839078 / 881651 / 839077
  • Original manufacturer: Garrett
  • BMTS reference: 40009761
  • Fits selected Audi A4, A5, A6, A7, A8, Q7, Q8, VW Amarok and Touareg applications
  • Suitable for 163-272HP / 120-200kW applications
  • Engine: 3.0 V6 TDI diesel
  • Key OE references: 059145873FA / 059145873BP / 059145873CL / 059145873CH / 059145873BJ / 059145873DB
  • Direct replacement - no modification required
  • Sold on an exchange basis
Original Manufacturer & OEM Quality

Turboworks remanufactures genuine OEM turbochargers. Depending on stock availability, an equivalent turbocharger from another original manufacturer may be supplied, provided it meets the required technical specifications and vehicle compatibility.

In some cases, worn or damaged original compressor covers or turbine housings may be replaced with brand-new, OEM-quality aftermarket replacements.

If you require a specific manufacturer or original OEM housings, please contact us before ordering to confirm availability.

Exchange Basis - How It Works

This turbocharger is supplied on an exchange basis, which means we require your old unit to be returned. You can arrange this in whichever way is most convenient:

  1. Pay the surcharge - your replacement turbo is dispatched immediately. The surcharge is refunded in full once we receive your old unit. Please return your old turbocharger within 21 days.
  2. Send your old turbo first - once received, we will dispatch your replacement the same day with no surcharge required.
  3. Visit our workshop - bring your old unit to our Eastbourne workshop and we will exchange it on-site.

Vehicle Compatibility

This turbocharger fits the following makes, models, and engine specifications:

Make Model HP kW Engine Engine Code Year
Volkswagen Amarok 3.0 TDI / 3.0 TDI 4Motion 163 / 204 / 224 / 258 120 / 150 / 165 / 190 3.0 V6 TDI DDXA / DDXB / DDXC / DDXD / DDXE 06/2016-
Volkswagen Amarok Platform-Chassis 3.0 TDI 4Motion 204 / 258 150 / 190 3.0 V6 TDI DDXB / DDXE 06/2016-
Volkswagen Touareg CR7 3.0 TDI 4Motion 249 183 3.0 V6 TDI CVMD 01/2018-
Audi Q7 4MB / 4MG 3.0 TDI quattro 211 / 218 / 249 / 258 / 272 155 / 160 / 183 / 190 / 200 3.0 V6 TDI CZZB / CRTE / CZZA / CVMD / CUEA / CRTC 01/2015-12/2019
Audi Q7 4MB / 4MG 3.0 TDI e-tron quattro 258 190 3.0 V6 TDI CVZA 08/2015-12/2019
Audi Q7 Van 4MB / 4MG 3.0 TDI quattro 218 / 272 160 / 200 3.0 V6 TDI CZZA / CZZB / CRTC 01/2015-12/2019
Audi Q7 45 TDI quattro 249 183 3.0 V6 TDI CVMD 07/2019-
Audi Q8 4MN 45 TDI quattro 249 183 3.0 V6 TDI CVMD 02/2018-
Audi A7 Sportback C7 4GA / 4GF 3.0 TDI 190 / 211 / 218 / 272 140 / 155 / 160 / 200 3.0 V6 TDI CZVE / CZVF / CRTF / CTCB / CZVC / CZVD / CRTE / CZVA / CTCC / CZVB / CRTD 05/2014-05/2018
Audi A8 D5 45 TDI quattro 249 183 3.0 V6 TDI CVMD 01/2019-
Audi A6 C7 / A6 C7 Avant 3.0 TDI 211 / 218 / 272 155 / 160 / 200 3.0 V6 TDI CTCB / CZVD / CRTF / CZVC / CTCC / CZVB / CRTE / CZVA / CRTD 09/2014-09/2018
Audi A6 Allroad C7 3.0 TDI quattro 190 / 211 / 218 / 272 140 / 155 / 160 / 200 3.0 V6 TDI CZVF / CRTF / CZVC / CRTE / CZVA / CRTD 09/2014-09/2018
Audi A4 B9 / A4 B9 Avant 3.0 TDI 218 / 272 160 / 200 3.0 V6 TDI CSWB / CRTC 05/2015-08/2018
Audi A4 Allroad B9 3.0 TDI quattro 218 / 272 160 / 200 3.0 V6 TDI CSWB / CRTC 01/2016-08/2018
Audi A5 B9 Coupe / Sportback / Cabriolet 3.0 TDI 218 / 272 160 / 200 3.0 V6 TDI CSWB / CRTC 07/2016-

Associated part numbers: BMTS 40009761, 888580-5001S, 888580-0001, 888580-1, 839078-5001S, 839078-0001, 839078-1, 881651-5001S, 881651-0001, 881651-1, 839077-5002S, 839077-0002, 839077-2, 839077-5008S, 839077-0008, 839077-8, 839077-5009S, 839077-0009, 839077-9, 839077-5011S, 839077-0011, 839077-11, 8390770009, 8390772009, 8390775002S, 8390775008S, 8390775009S, 8390775011S, 8390780001, 8390782001, 8390785001S, 8885800001, 8885801, 8885802001, 8885805001S, GTD2060VZ, 888580-9001S, 059 145 873 FA, 059145873FA, 059145873BP, 059145873CL, 059145873CH, 059145873BJ, 059145873DB, 059145873EN, 059145873ES, 059145873BL

Fitting Advice

We always recommend having your replacement turbocharger fitted by a qualified mechanic. Correct installation is essential to ensure proper fitment, reliable operation, and long service life from day one.

You can read our full fitting instructions here.

It is also essential that the root cause of the original turbocharger failure is identified before fitting the replacement. In many cases there is an underlying issue that also needs attention, such as a blocked DPF. This is one of the most common contributing factors, and fitting a new turbo without resolving it can place the replacement under unnecessary strain.

We also offer a professional DPF cleaning service if required.

Fitting Service at Turboworks

If you would like us to carry out the installation, our Eastbourne workshop is staffed by experienced mechanics whose day-to-day work includes turbocharger replacement, diagnostics, and related repairs.

If you are looking for a turbo specialist, click here to request a fitting quote, or call us directly on 07440 707 255 or 01323 301 999.

Please note that we do not offer a while-you-wait service. We will arrange a booking time that works for you.

Warranty Information

Unless otherwise stated, warranty is provided to the original purchaser for repair or replacement of the turbocharger for 1 year from the date of purchase or 12,000 miles (whichever occurs first). Warranty covers the turbocharger for faulty workmanship or components and does not extend to damage caused by misuse in fitting or operation.

The reason for failure of the previous turbocharger must be rectified prior to fitting a replacement. Air and oil filters, engine oil, gaskets and the oil feed pipe need to be changed or replaced. Proof of purchase of components may be required to support any claims.

Proof and date of the original purchase will be required before considering any warranty claim, and the unit must be returned complete. Any attempt to dismantle or repair the unit will invalidate the conditions of warranty. Warranty does not cover any cost of labour or materials required to remove or reinstall the turbocharger.

Read full Warranty Information

Delivery & Dispatch

Delivery is available within the United Kingdom and internationally, subject to availability. Free delivery applies to turbochargers supplied to UK mainland addresses unless otherwise stated. Delivery timeframes provided are estimates only.

Stock items ordered before 3 pm are typically dispatched the same working day for next-day delivery. Orders placed after 3 pm, at weekends or on bank holidays will be dispatched on the next working day.

Non-stock or special-order items are subject to lead times, which will be confirmed separately. Certain geographical locations may require extended delivery periods.

Please inspect goods immediately upon delivery. Where packaging is visibly damaged, delivery should be refused and reported without delay.

Read full Collection and Delivery information

Returns

If you need to return a turbocharger or send a unit back to us, please contact us first so we can advise on the correct process.

Where a unit is being returned or collected, it must be securely packaged in a suitable, rigid cardboard box and adequately protected using appropriate packaging materials. Non-essential components, including oil feed pipes, oil return pipes, sensors, wiring, brackets, and ancillary fittings, should be removed before sending.

Where return shipment is arranged by the customer, please retain proof of shipment and tracking details.

Turbocharger Guides & Advice

Please check your turbocharger part number before ordering. Many vehicles use more than one turbocharger version depending on model year, engine code, power output, emissions setup and actuator type.

If you are unsure whether your turbocharger has failed, or you want to understand common causes of turbo problems before ordering, visit our technical information hub.

For Turboworks updates, buying guidance and practical articles about replacement turbochargers, visit our blog.

Need help confirming compatibility?

Contact Turboworks on 07440 707 255 or 01323 301 999.
Based in Eastbourne - specialists in turbocharger replacement, supply, and diagnostics.

Condition:
Remanufactured
Fits to:
Audi A4, A5, A6, A7, A8, Q7, Q8
Volkswagen Amarok, Touareg
Engine Code:
DDXA, DDXB, DDXC, DDXD, DDXE, CVMD, CVZA, CUEA, CRTC, CZZA, CZZB, CZVE, CZVF, CRTF, CTCB, CZVC, CZVD, CRTE, CZVA, CTCC, CZVB, CRTD, CSWB
Power (BHP):
163-272HP
Capacity:
3.0 V6 TDI
Years:
Audi A4 3.0 TDI 2015-2018
Audi A5 3.0 TDI 2016-
Audi A6 3.0 TDI 2014-2018
Audi A7 3.0 TDI 2014-2018
Audi A8 3.0 TDI 2019-
Audi Q7 3.0 TDI 2015-2019
Audi Q8 3.0 TDI 2018-
VW Amarok 3.0 TDI 2016-
VW Touareg 3.0 TDI 2018-
Part numbers:
839077-9, 839077-5011S, 839077-0011, 839077-11, 8390770009, 8390772009, 8390775002S, 8390775008S, 8390775009S, 8390775011S, 8390780001, 8390782001, 8390785001S, 8885800001, 8885801, 8885802001, 8885805001S, GTD2060VZ, 888580-9001S
40009761, 888580-5001S, 888580-0001, 888580-1, 839078-5001S, 839078-0001, 839078-1, 881651-5001S, 881651-0001, 881651-1, 839077-5002S, 839077-0002, 839077-2, 839077-5008S, 839077-0008, 839077-8, 839077-5009S, 839077-0009
OE numbers:
059 145 873 FA, 059145873FA, 059145873BP, 059145873CL, 059145873CH, 059145873BJ, 059145873DB, 059145873EN, 059145873ES, 059145873BL
Original Turbo Manufacturer
BMTS - Bosch Mahle Turbo Systems
Garrett / Honeywell
TWR-00869
