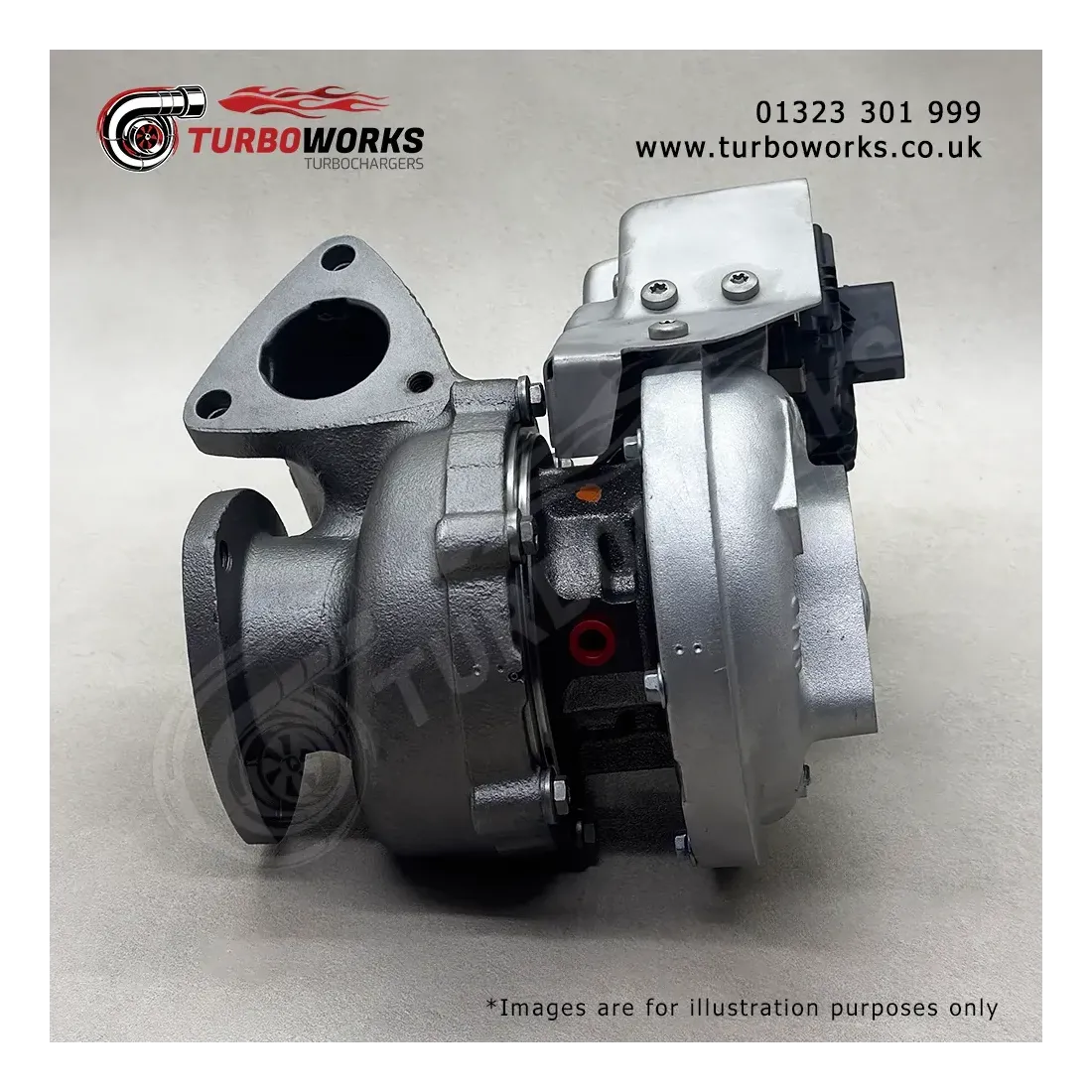

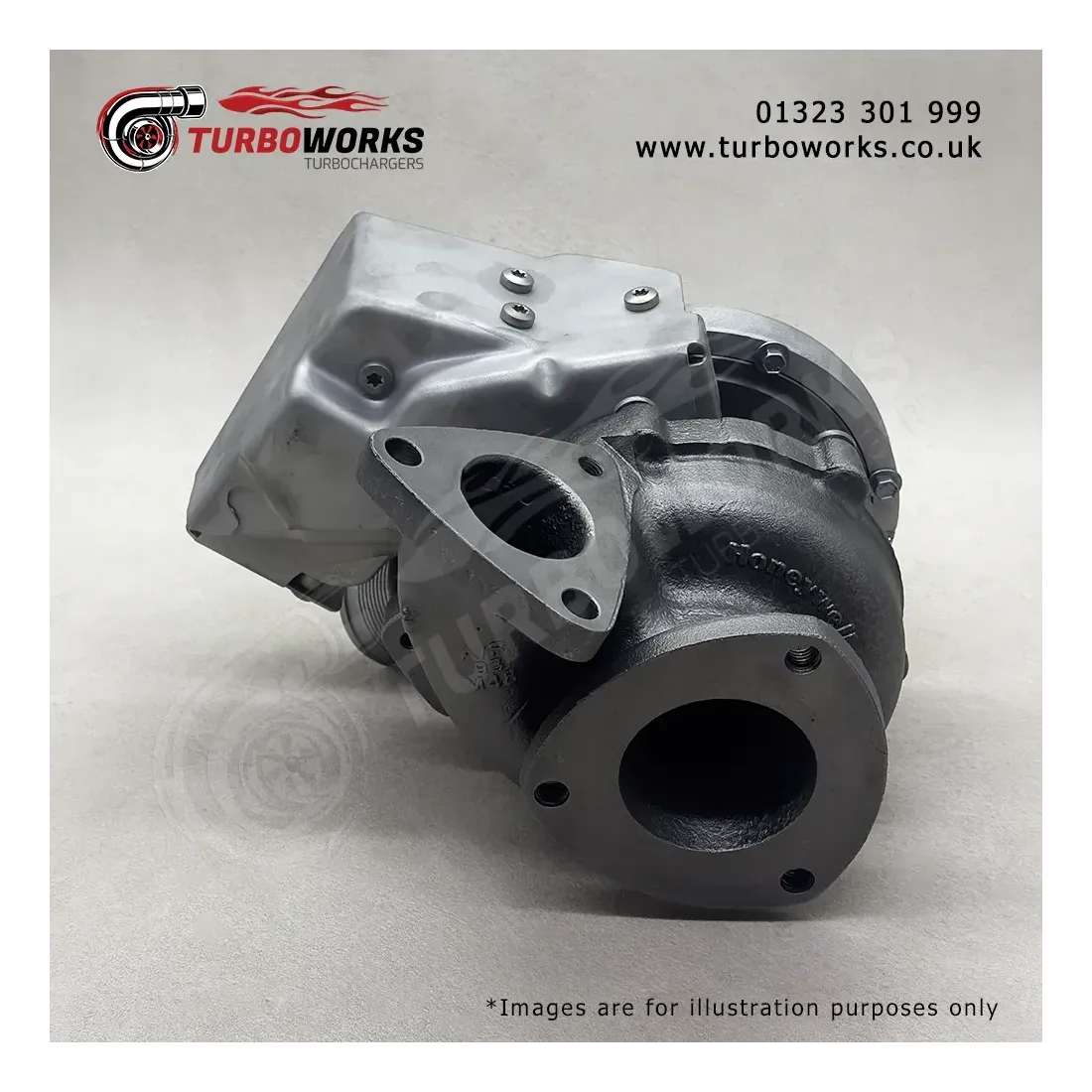

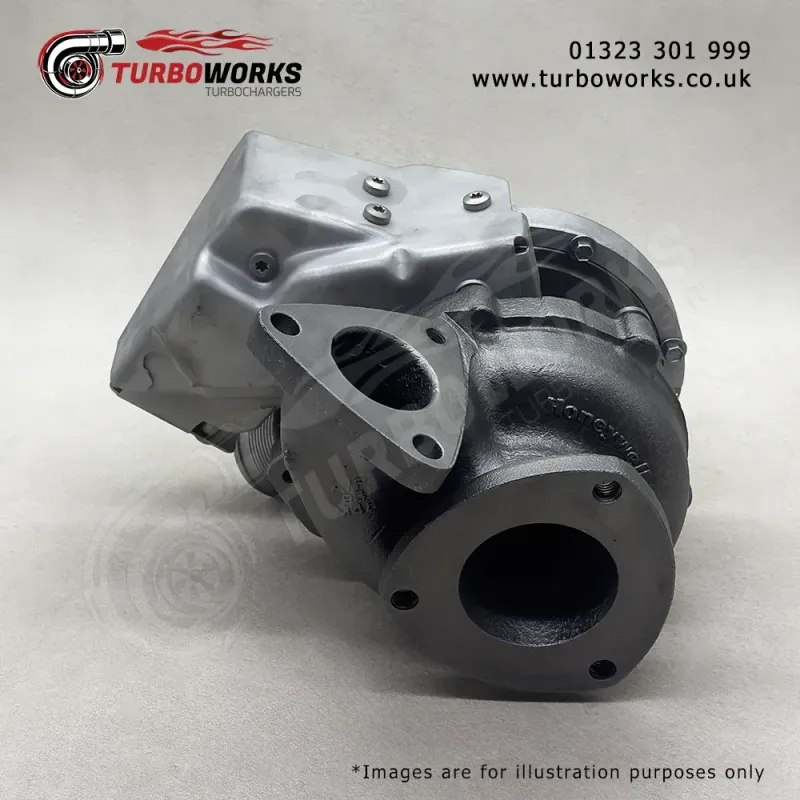

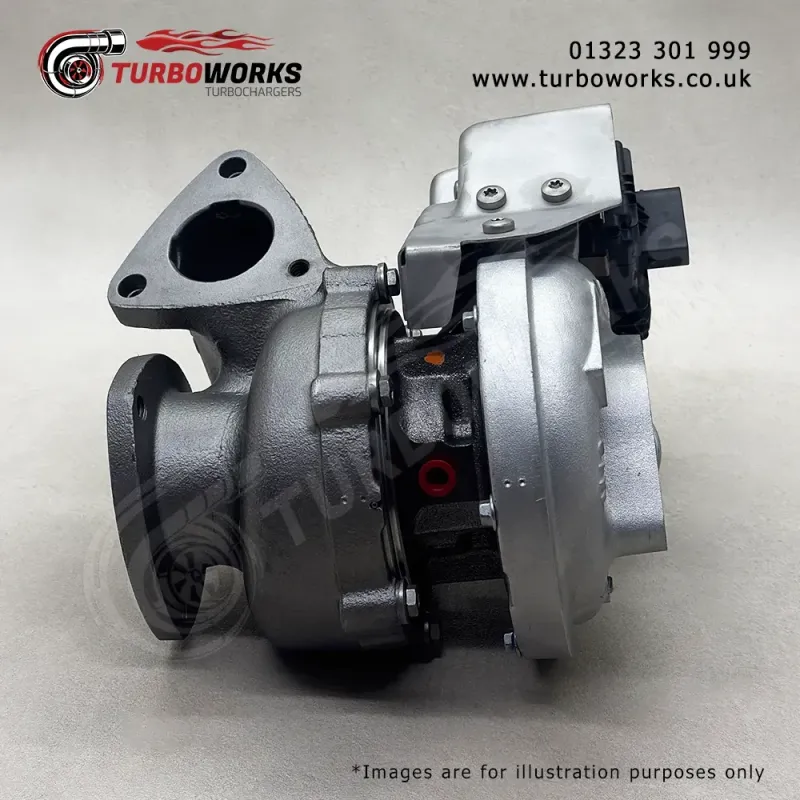

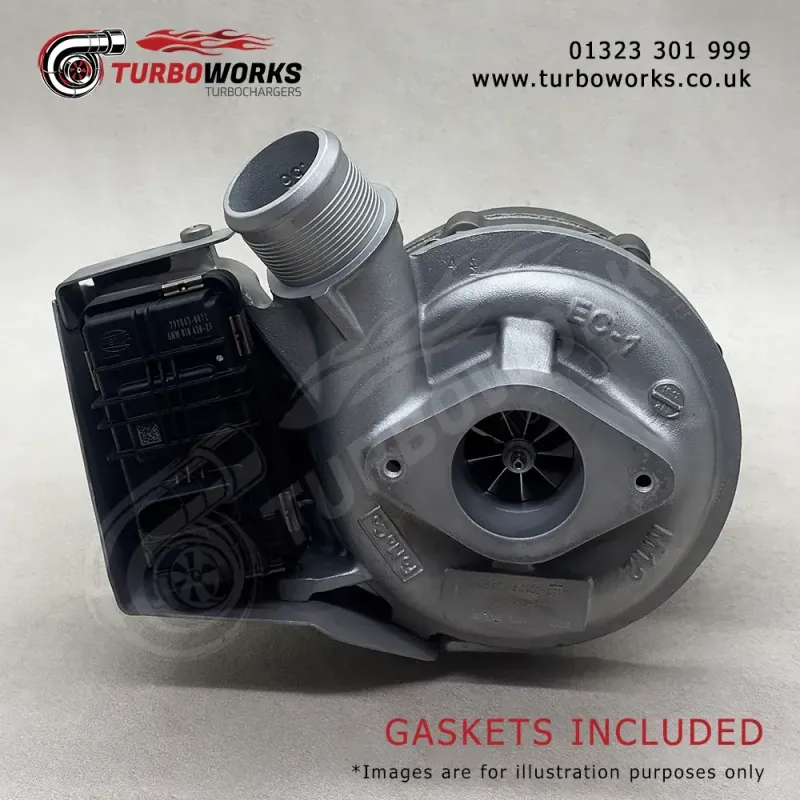

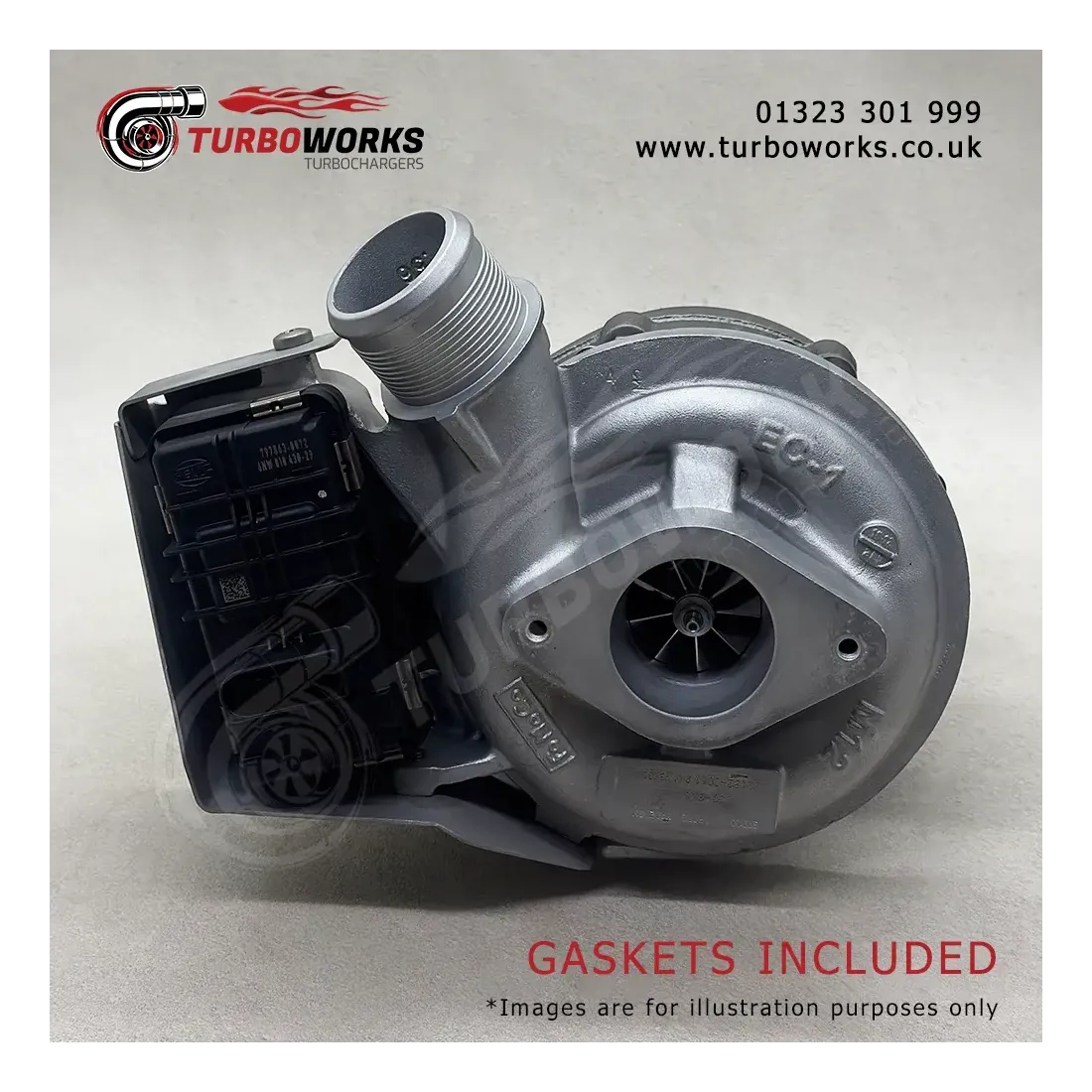

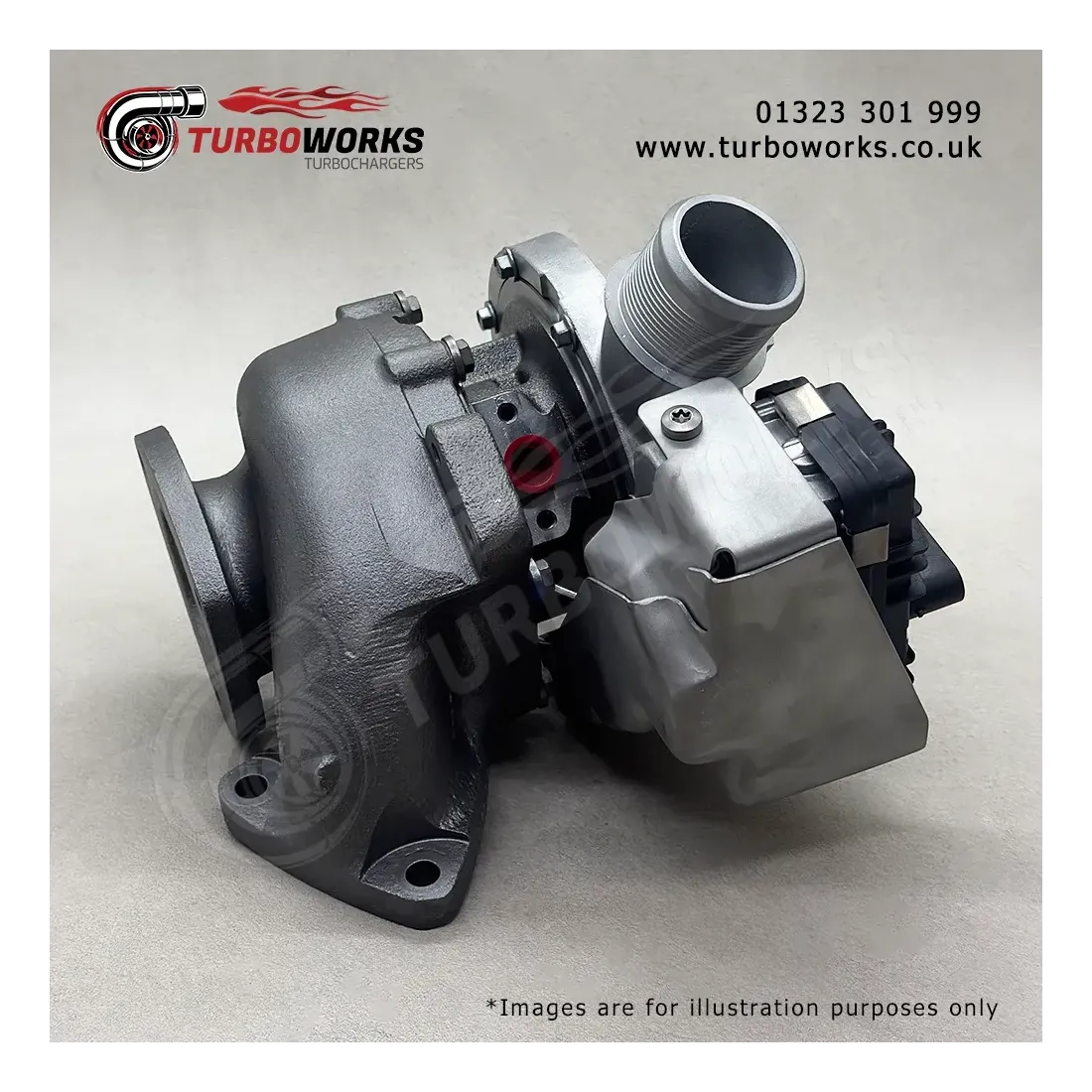

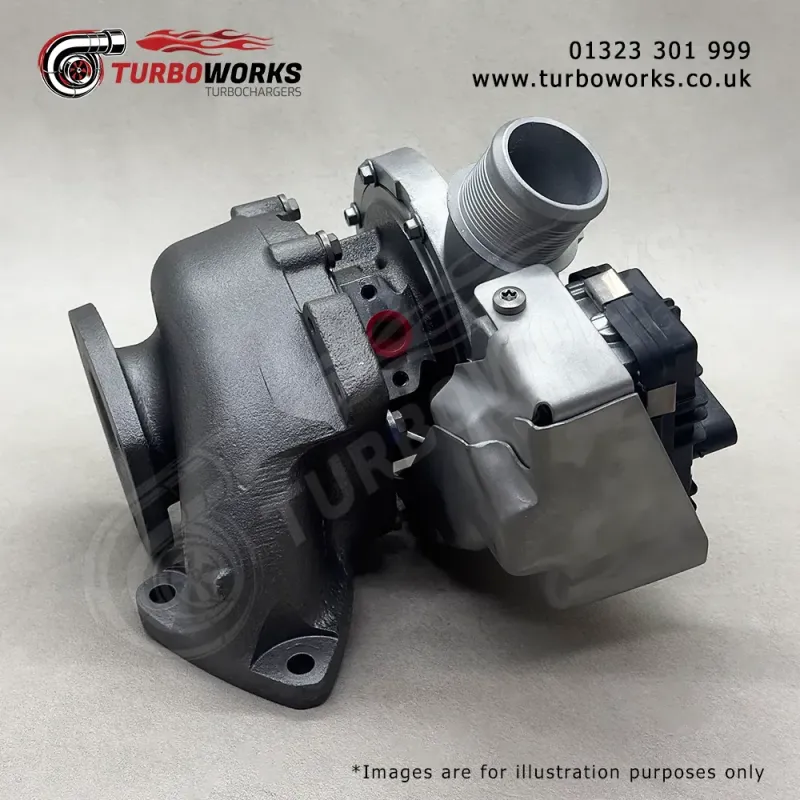

Remanufactured turbocharger for Ford 3.2 Duratorq TDCi diesel engines, fitted to selected Ford Ranger and Ford Everest 3.2 TDCi applications. Covers 200HP / 147kW 3198cc engines, including Ranger PX2 / PX3, Ranger TKE and Everest UA Series models where the original turbo matches the listed part numbers.
OEM-spec remanufactured turbocharger covering Garrett part numbers 822182-5014S, 822182-5011S, 822182-5009S, 822182-5007S, 822182-5005S and related 889939 references. OE references include FB3Q-6K682-PC, FB3Q-6K682-PA, FB3Q-6K682-DB, FB3Q-6K682-DE and FB3Q-6K682-PD. Commonly searched as Ford Ranger 3.2 TDCi turbo, Ford Everest 3.2 turbocharger, 822182 turbo replacement and 3.2 Duratorq turbo.
Please check your part number before ordering. Call 07440 707 255 or 01323 301 999 for help.
Images are for illustration purposes only.
Supplied with gaskets included, without the original manufacturer’s box
Used on selected Ford 3.2 Duratorq TDCi applications, this reman turbocharger is suitable for Ford Ranger and Ford Everest models using the 3.2 five-cylinder diesel engine. It is commonly matched to Ranger PX2 / PX3, Ranger TKE and Everest UA Series vehicles where the original turbo matches the listed Garrett or Ford OE references. The main turbocharger reference for this unit is 822182-5014S. Related Garrett references include 822182-0014, 822182-5011S, 822182-5009S, 822182-5007S, 822182-5005S, 889939-5001S, 889939-5003S and 889939-5003W. BMTS reference 40009595 is also associated with this turbocharger family.
This remanufactured Ford Ranger / Everest 3.2 TDCi turbocharger is built to OEM specification as a direct replacement unit for compatible Duratorq 3.2 diesel applications. It is designed to restore correct boost pressure, drivability and engine performance when fitted to the correct vehicle. For fitting, diagnostics, exchange supply and related workshop support, see our turbocharger services.
This turbocharger is supplied on an exchange basis, which means we require your old unit to be returned. You can arrange this in whichever way is most convenient:
This turbocharger fits the following makes, models, and engine specifications:
| Make | Model | HP | kW | Engine | Engine Code | Year |
|---|---|---|---|---|---|---|
| Ford | Ranger TKE / PX2 / PX3 3.2 TDCi 4x4 | 200 | 147 | 3.2 Duratorq TDCi / 3198cc | ENSA / P5-AT / SA2R / SA2S / SA2W / SAFA | 04/2011- |
| Ford | Everest UA Series 3.2 Duratorq TDCi | 200 | 147 | 3.2 Duratorq TDCi / 3198cc | SA2R / SA2S / SA2W / SAFA | Please match by part number |
Associated part numbers: 822182-5014S, 822182-0014, 822182-14, 822182-5011S, 822182-0011, 822182-11, 822182-5009S, 822182-0009, 822182-9, 822182-5007S, 822182-0007, 822182-7, 822182-5005S, 822182-0005, 822182-5, 889939-5001S, 889939-0001, 889939-1, 889939-5003W, 889939-0003, 889939-3, 889939-5003S, 889939-0003, 889939-3, BMTS 40009595, FB3Q-6K682-PC, FB3Q6K682PC, FB3Q-6K682-PA, FB3Q6K682PA, FB3Q6K602PC, FB3Q-6K602-PC, FB3Q6K682DB, FB3Q-6K682-DB, FB3Q6K682DE, FB3Q-6K682-DE, FB3Q6K682PD, FB3Q-6K682-PD, FB3Z6K682D, FB3Z-6K682-D, FB3J6K682PD, FB3J-6K682-PD, FB-3Q6K682PE, FB3Q6K682PE, RMFB-3Q6K682-PE, RMFB3Q-6K682-PC, FB3Q-6K682PC, FB-3Q6K682-PB, FB3Q6K682PB, RMFB-3Q6K682-PB, FB-3Q6K682PB, RMFB3Q-6K682-PA, RMFB3Q-6K682-PD, RMFB3J-6K682-PD, FB3J-6K682PD
We always recommend having your replacement turbocharger fitted by a qualified mechanic. Correct installation is essential to ensure proper fitment, reliable operation, and long service life from day one.
You can read our full fitting instructions here.
It is also essential that the root cause of the original turbocharger failure is identified before fitting the replacement. In many cases there is an underlying issue that also needs attention, such as a blocked DPF. This is one of the most common contributing factors, and fitting a new turbo without resolving it can place the replacement under unnecessary strain.
We also offer a professional DPF cleaning service if required.
If you would like us to carry out the installation, our Eastbourne workshop is staffed by experienced mechanics whose day-to-day work includes turbocharger replacement, diagnostics, and related repairs.
If you are looking for a turbo specialist, click here to request a fitting quote, or call us directly on 07440 707 255 or 01323 301 999.
Please note that we do not offer a while-you-wait service. We will arrange a booking time that works for you.
Unless otherwise stated, warranty is provided to the original purchaser for repair or replacement of the turbocharger for up to 2 years from date of purchase or 12,000 miles (whichever occurs first). Warranty covers the turbocharger for faulty workmanship or components and does not extend to damage caused by misuse in fitting or operation.
The reason for failure of the previous turbocharger must be rectified prior to fitting a replacement. Air and oil filters, engine oil, gaskets and the oil feed pipe need to be changed or replaced. Proof of purchase of components may be required to support any claims.
Proof and date of the original purchase will be required before considering any warranty claim, and the unit must be returned complete. Any attempt to dismantle or repair the unit will invalidate the conditions of warranty. Warranty does not cover any cost of labour or materials required to remove or reinstall the turbocharger.
Delivery is available within the United Kingdom and internationally, subject to availability. Free delivery applies to turbochargers supplied to UK mainland addresses unless otherwise stated. Delivery timeframes provided are estimates only.
Stock items are typically dispatched for next working day delivery where orders are placed before 3 pm. Orders placed after 3 pm, over a weekend, or on a bank holiday will normally be dispatched on the next working day.
Non-stock or special-order items are subject to lead times, which will be confirmed separately. Certain geographical locations may require extended delivery periods.
Please inspect goods immediately upon delivery. Where packaging is visibly damaged, delivery should be refused and reported without delay.
If you need to return a turbocharger or send a unit back to us, please contact us first so we can advise on the correct process.
Where a unit is being returned or collected, it must be securely packaged in a suitable, rigid cardboard box and adequately protected using appropriate packaging materials. Non-essential components, including oil feed pipes, oil return pipes, sensors, wiring, brackets, and ancillary fittings, should be removed before sending.
Where return shipment is arranged by the customer, please retain proof of shipment and tracking details.
Please check your turbocharger part number before ordering. Many vehicles use more than one turbocharger version depending on model year, engine code, power output, emissions setup and actuator type.
If you are unsure whether your turbocharger has failed, or you want to understand common causes of turbo problems before ordering, visit our technical information hub.
For Turboworks updates, buying guidance and practical articles about replacement turbochargers, visit our blog.
